const router = createBrowserRouter([
{
path: "/",
element: <Root />,
errorElement: <ErrorPage />,
},
{
path: "dashboard/:id",
element: <ThoughtSpotLiveboard />,
},
]);ThoughtSpot React Components Tutorial
Table of Contents
ThoughtSpot provides React components as part of the Visual Embed SDK.
There is also a REST API SDK available in TypeScript which can be included in any React app.
This tutorial walks through the process of installing and integrating the ThoughtSpot React components and REST API SDK into an existing React app.
The tutorial will discuss common React app features and how to integrate the ThoughtSpot technologies into the React patterns.
Please download the example app from GitHub and follow the initial setup commands listed in the README within the GitHub repository.
Getting started with React🔗
React is a widely used web application framework.
There are many great resources for understanding React itself, including the React project’s own website. In the tutorial, React concepts will be briefly explained in relation to integrating ThoughtSpot components within the embedding React app.
React projects almost always use many different packages on top of the baseline "React" install.
Within the tutorial, all packages will be given a brief explanation, with links to the respective project documentation.
Routes and pages🔗
Routes are URLs that load different "pages" within the app.
In some web application systems, a particular URL will load content from a distinct "page" that exists somewhere on the web server.
React apps are typically "single-page apps": rather than there being many separate "actual" HTML pages loaded by the web browser, an initial page is loaded and then updates are made to that "single page".
Routing in React defines what components are retrieved for a given URL to update the "single page".
ThoughtSpot provides various types of components that load objects using specific IDs of the content in the ThoughtSpot application.
To make a flexible system, a page route must return the component and pass the ID of the content to load into that component.
React Router🔗
The most common package for routing is react-router, with most examples importing react-router-dom in their App.tsx file.
An example of a dynamic page route using React Router might look like:
where the :id portion of the path will be passed on to the component as one of the props.
If your app uses React Router, please work with your team to understand how to create and use dynamic variables in the routes and pass them into components.
The app in this tutorial instead uses Next.js for routing.
Next.js🔗
The tutorial app uses Next.js, a platform built on top of React
Next.js provides automatic file-based routing via defined patterns and directory structures.
Under the app directory, any subdirectory automatically becomes a URL route with the same name, with the page.tsx file inside defining the returned component.
Adding square brackets around a subdirectory name like [variableName] creates dynamic page route with the name in brackets sent to the component defined in page.tsx.
Tutorial app structure🔗

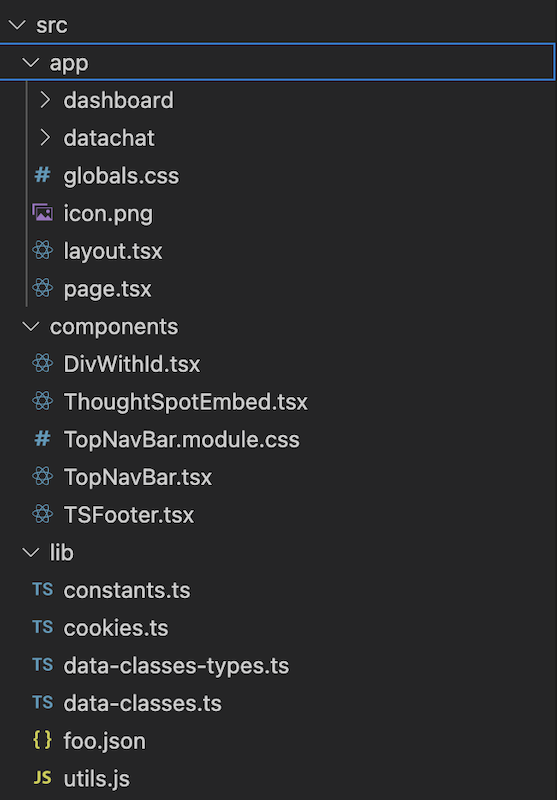

Top-level subdirectory structure🔗
The app has three main directories, per a standard Next.js app structure:
-
app: distinct app routes generated from thepage.tsxof each subdirectory -
components: shared components in.tsxfiles that can be called by multiple otherpage.tsxfiles -
lib: other constant files
lib/constants.ts: shared configurations🔗
app/constants.ts is a static file for declaring shared properties that might be re-used by any other page within the React app.
The constants const is declared and exported with several properties, the most important of which is tsURL, because it configures the ThoughtSpot instance from which the content will load.
export const constants = {
tsURL: "https://{}.thoughtspot.cloud",
username: "",
password: "",
appTopTitle: "My App",
appTopIconUrl: "/images/ts.png",
primaryColorCode: "rgb(0, 0 , 0)",
secondaryColorCode: "rgb(255, 255, 255)"
};You are welcome to add any additional properties you might want to use.
Other pages import the code from constants.ts using a standard React import:
import {constants, cssFiles} from "@/lib/constants";app/layout.tsx: the React app itself🔗
app/layout.tsx is a standard Next.js file that defines the overall layout of the app.
It returns the RootLayout() function for the React framework, into with all other components will be added in as {children}.
The actual JSX that is returned is simple, as the tutorial app is composed of only a top menu and a full-width area for displaying ThoughtSpot content:
<body>
<>
<TopNavBar/>
<ThoughtSpotEmbed>
<div className="embeddedContent">{children}</div>
</ThoughtSpotEmbed>
<TSFooter/>
</>
</body>Note that everything above is a React component, defined in other files and included at the top of layout.tsx.
app/page.tsx: the default page🔗
app/page.tsx is the page that contains the initial body that is loaded when a user comes to the app, without any other pages:
export default function Home() {
return (
<main className="flex min-h-fit flex-col items-center justify-between p-24">
<div id="welcome">
<h1>Welcome to the ThoughtSpot Embedding Example</h1>
<p>
This application demonstrates some of the basic embedding techniques possible using React and the
ThoughSpot SDK.
</p>
<p> </p>
...
</div>
</main>
);
}You are welcome to put anything in this page, but it is really a placeholder that would instead be taken by the real app you embed ThoughtSpot components into.
components/TopNavBar.tsx: the top menu bar🔗
components/TopNavBar.tsx is a component page that defines the top menu bar within the app.
You’ll notice it imports several components from Flowbite, a commonly used React package with many available UI components, along with the Link component from Next.js. Do not feel bound to use any components in the tutorial, they are simply to show how to integrate the ThoughtSpot components with all of the various other React components and packages in use within a normal application project.
"use client";
import Link from "next/link";
import {Dropdown, Navbar} from "flowbite-react";
import styles from "./TopNavBar.module.css";
import {constants} from "@/lib/constants";
interface NavBarProps {
}TopNavBar.tsx is where the links to routes for the menu pages are defined:
<Navbar.Collapse>
<Navbar.Link className={styles.navlink} href="/dashboard">
Dashboards
</Navbar.Link>
<Navbar.Link className={styles.navlink} href="/datachat">
Data Chat
</Navbar.Link>
</Navbar.Collapse>Again, this is simply to provide a simple example of how you will integrate routes to pages that display ThoughtSpot components within your own app.
Other subdirectories and files🔗
The following lessons will cover the other files and the subdirectory structure used within the app to properly use the ThoughtSpot React components.
