JWT ABAC implementation with filter rules → ABAC via RLS

Table of Contents

Analyze your current implementation
- Retrieve values from user properties (Optional)
Configure equivalent RLS rules and variables
Expected setup before the testing phase
Test the migration
Examples for mapping legacy JWT ABAC GA expressions to ABAC via RLS
Additional resources

To migrate the JWT ABAC implementation with filter rules to the ABAC via RLS method, complete the following steps:

Analyze your current JWT ABAC implementation
Configure equivalent RLS rules using variables
Implement and test RLS-based ABAC in a non-production environment
Adjust your JWT payloads to set variable values and remove legacy configuration with filter rules.
Roll out and decommission legacy JWT ABAC

Analyze your current implementation🔗

In a typical legacy JWT ABAC implementation:

The /api/rest/2.0/auth/token/custom endpoint is used for JWT generation, populating filter_rules or parameter_values in the token to create data security rules. Depending on user requirements, these values are applied on all models or specific models as per the object scope set in the request payload.

curl -X POST \
  --url 'https://{ThoughtSpot-Host}/api/rest/2.0/auth/token/custom'  \
  -H 'Accept: application/json' \
  -H 'Content-Type: application/json' \
  --data-raw '{
  "username": "secured_user",
  "secret_key": "{secret_key}",
  "persist_option": "REPLACE",
  "filter_rules": [
   {
     "column_name": "Country",
     "operator": "IN",
     "values": ["Germany", "Australia"]
   }
  ]
}'

The is_mandatory_token_filter attribute is set to true on columns in Models to secure them by default.
Indexing on all sensitive columns in your tables is disabled.

Retrieve values from user properties (Optional)🔗

If required, you can retrieve the filter and parameter values stored for each JWT user from the user metadata via a POST request to the /api/rest/2.0/users/search API endpoint. The access_control_properties section of user metadata returned in the API response includes this information:

[{
	"id": "0000084b-1e75-d506-8258-0b6abbb863ed",
	"name": "testjwtuser",
	"display_name": "testjwtuser",
	[...]
	"access_control_properties": {
		"<org_id>": {
			"ALL": {
				"filter_rules": [{
					"column_name": "country",
					"operator": "IN",
					"values": ["Germany", "Australia"]
				}],
				"parameter_values": []
			}
		}
	},
	"variable_values": {}
}]

Configure equivalent RLS rules and variables🔗

You may want to set up RLS rules and variables equivalent to filter and parameter rules in your existing implementation. Note that the following mapping pattern applies to each attribute:

Column in filter_rules → RLS rule condition with formula variable on that column.
Values in filter_rules → variable values passed via JWT.
is_mandatory_token_filter behavior → RLS rule that denies all when variable is empty or missing.
TS_WILDCARD_ALL or similar “allow all” semantics → variable value TS_WILDCARD_ALL in the RLS rule.

To set equivalent RLS rule conditions and variables:

Create formula variables using the /api/rest/2.0/template/variables/create API endpoint. These variables will be referenced in RLS rules. To create variables, you need ADMINISTRATION (Can administer ThoughtSpot) privilege. If role-based access control (RBAC) is enabled on your instance, the CAN_MANAGE_VARIABLES (Can manage variables) privilege is required.

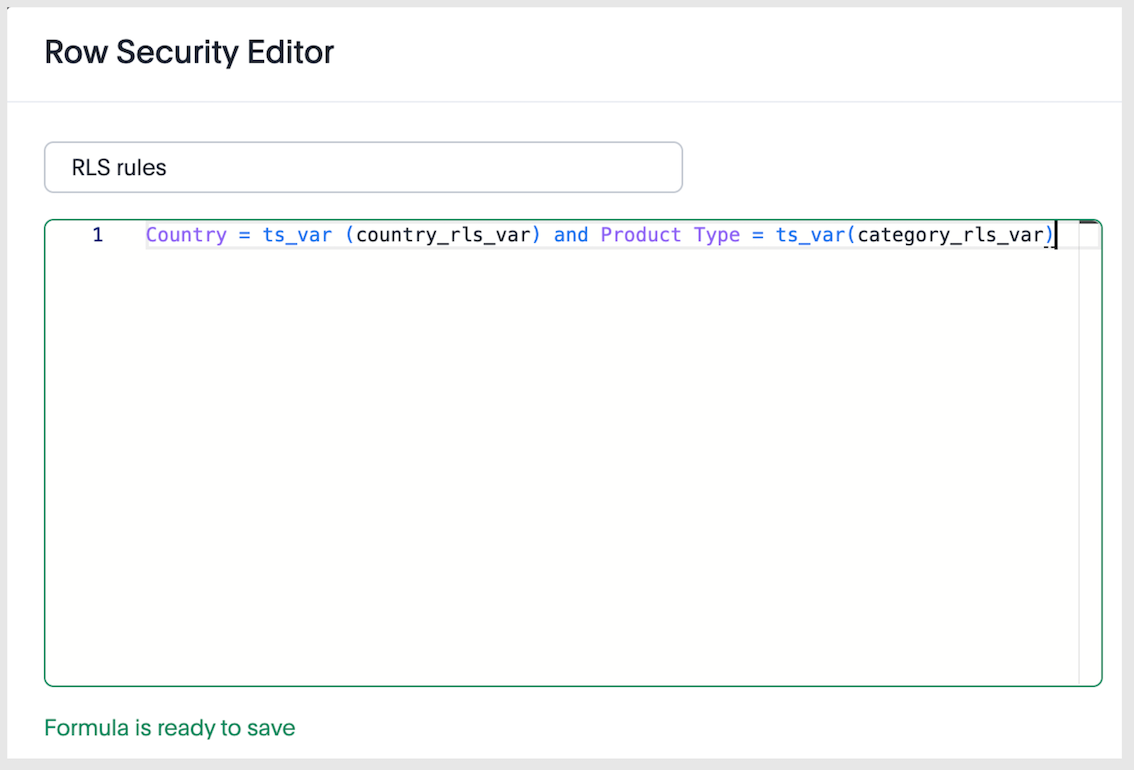

Create rules using these variable(s) directly on the ThoughtSpot table in the Row Security Editor tab. These should be the same rules as the ones previously defined in the JWT, which will be ultimately replaced after migration. To add multiple conditions, use the AND operator.

Create a JWT token request with variable_values and generate the token using the /api/rest/2.0/auth/token/custom API endpoint. Note that these values can be scoped to specific models, so that different security rules can be applied to different data in ThoughtSpot.

curl -X POST \
  --url 'https://{ThoughtSpot-Host}/api/rest/2.0/auth/token/custom'  \
  -H 'Accept: application/json' \
  -H 'Content-Type: application/json' \
  --data-raw '{
  "username": "secured_user",
  "secret_key": "{secret_key}",
  "persist_option": "REPLACE",
  "variable_values": [
    {
      "name": "country_rls_var",
      "values": [
        "Germany",
        "Australia"
      ]
    },
    {
      "name": "category_rls_var",
      "values": [
        "Jeans",
        "Jackets"
      ]
    }
  ],
  "objects": [
    {
      "type": "LOGICAL_TABLE",
      "identifier": "cd252e5c-b552-49a8-821d-3eadaa049cca"
    },
    {
      "type": "LOGICAL_TABLE",
      "identifier": "38399c50-02f1-4310-804b-214b81f25333"
    }
 ]}'

Keep indexing disabled on all sensitive columns.

Note

Users with administration and Can Administer and Bypass RLS privileges are exempt from RLS rules and can view all rows unless additional logic is implemented to secure rows in the data model. RLS rules are defined on tables, but Models can be configured to either apply or bypass those rules. For more information, see How RLS rules work.

Verify variable values are assigned to your users. This information can be retrieved using one of the following methods:
- Via a POST request to the /api/rest/2.0/users/search API endpoint. Verify the variable_values section of the user metadata returned in the API response.
- Via a POST request to the /api/rest/2.0/template/variables/search API endpoint, with variables specified in the request body. Set response_content to METADATA_AND_VALUES to fetch the variable values and verify the response payload.

  Note

  To update variable values for a user, use the /api/rest/2.0/auth/token/custom or /api/rest/2.0/template/variables/update-values API endpoint.

Expected setup before the testing phase🔗

Ensure that you have both legacy JWT GA and ABAC via RLS properly set up in your environment before starting the tests. For testing purposes, we’ll use an example setup with filter_rules, the mandatory token filter setting in the model, and RLS rules with country_rls_var and category_rls_var variables.

Your implementation can also include parameters to configure security rules by using pass-through functions. Typically, users may want to map existing security rules, such as those created with filter_rules or parameter values used in model formulas and model filters, to new RLS rules that reference variables and are applied at the table level.

Test the migration🔗

We recommend testing the migration in these main steps:

Ensure everything continues to work correctly when both legacy JWT GA and ABAC via RLS are enabled.
Remove filter conditions on legacy JWT ABAC implementation to test how security rules function with solely ABAC via RLS.
Remove legacy JWT GA, and retain only ABAC via RLS.

Important

When creating a token request with "persist_option": "REPLACE", the presence (or absence) of specific keys in your JSON payload determines whether existing security rules are retained, updated, or deleted.

Legacy rules🔗

The legacy parameters, filter_rules and parameter_values, are linked. If you define one without including the other in the API request, the omitted parameter will be deleted from the user profile. This behavior remains unchanged with the introduction of variable_values to maintain backward compatibility.

Migration to variable values🔗

The variable_values parameter in the ABAC via RLS implementation operates independently. Sending variable_values alone will not erase your legacy rules. Likewise, sending legacy parameters without variable_values will not erase stored variable values.

This allows developers to assign variable_values for ABAC via RLS without disrupting an existing legacy JWT GA setup. To reset all legacy values from users' metadata, use "persist_option": "RESET".

Summary matrix🔗

Use the information in the following table to understand how API calls change the user’s stored security settings and variable store settings:

Your payload includes… filter_rules in user’s access_control_properties parameter_values in user’s access_control_properties variable_values in the variable store

Your payload includes…	`filter_rules` in user’s `access_control_properties`	`parameter_values` in user’s `access_control_properties`	`variable_values` in the variable store
Legacy requests
Both `filter_rules` and `parameter_values`	Updates	Updates	Unchanged
Only `filter_rules`	Updates	DELETED	Unchanged
Only `parameter_values`	DELETED	Updates	Unchanged
Migration calls
`filter_rules` and `variable_values`	Updates	DELETED	Updates
`parameter_values` and `variable_values`	DELETED	Updates	Updates
`filter_rules`, `parameter_values`, and `variable_values`	Updates	Updates	Updates
ABAC via RLS only
Only `variable_values`	Unchanged	Unchanged	Updates

Legacy requests

Both filter_rules and parameter_values

Updates

Unchanged

Only filter_rules

Updates

DELETED

Unchanged

Only parameter_values

DELETED

Updates

Unchanged

Migration calls

filter_rules and variable_values

Updates

DELETED

Updates

parameter_values and variable_values

DELETED

Updates

filter_rules, parameter_values, and variable_values

Updates

ABAC via RLS only

Only variable_values

Unchanged

Updates

Phase 1: Test RLS while legacy JWT configuration is still enabled🔗

Generate tokens that include both:

Your existing legacy JWT ABAC keys (filter_rules and/or parameter_values)
New variable_values for your RLS rules

For example:

curl -X POST \
  --url 'https://{ThoughtSpot-Host}/api/rest/2.0/auth/token/custom'  \
  -H 'Accept: application/json' \
  -H 'Content-Type: application/json' \
  --data-raw '{
  "username": "secured_user",
  "secret_key": "{secret_key}",
  "persist_option": "REPLACE",
  "filter_rules": [
   {
     "column_name": "Country",
     "operator": "IN",
     "values": ["Germany", "Australia"]
   }
  ],
  "variable_values": [
    {
      "name": "country_rls_var",
      "values": [
        "Germany",
        "Australia"
      ]
    }
  ]
}'

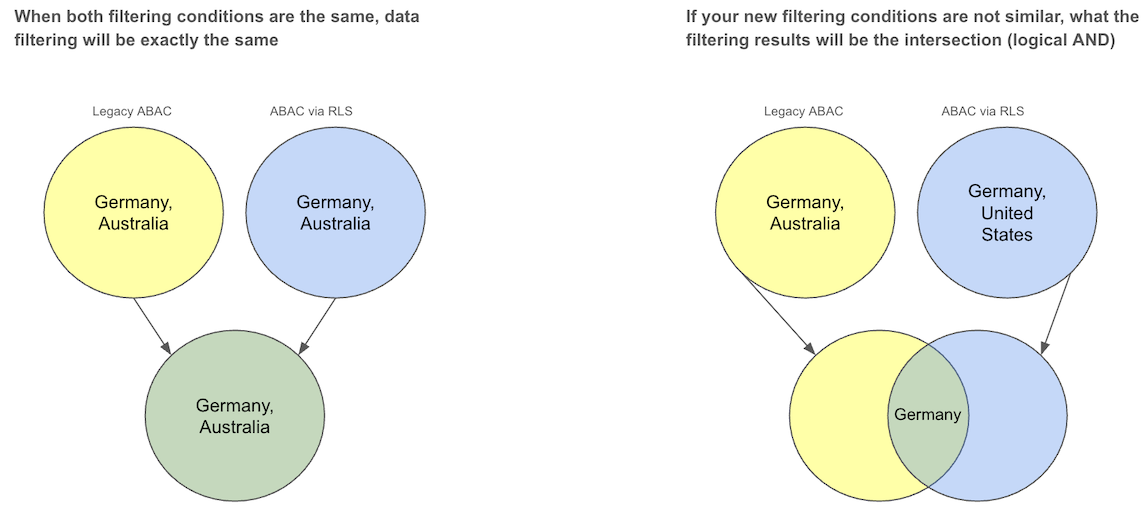

Since both conditions are similar, the data should be filtered uniformly as shown in the following diagram. If the filtering conditions differ, the resulting data should be the intersection of the two.

JWT migration test

Phase 2: Bypass legacy JWT configuration🔗

If the phase 1 testing is conclusive, bypass legacy JWT configuration. To test RLS independently while keeping legacy JWT configuration as a fallback:

When generating tokens, set the legacy JWT ABAC implementation to allow everything by using the keyword TS_WILDCARD_ALL in your legacy filter_rules and parameter_values.
Keep sending variable_values for the RLS rules as before.

For example:

curl -X POST \
  --url 'https://{ThoughtSpot-Host}/api/rest/2.0/auth/token/custom'  \
  -H 'Accept: application/json' \
  -H 'Content-Type: application/json' \
  --data-raw '{
  "username": "secured_user",
  "secret_key": "{secret_key}",
  "persist_option": "REPLACE",
  "filter_rules": [
   {
     "column_name": "Country",
     "operator": "IN",
     "values": ["TS_WILDCARD_ALL"]
   }
  ],
  "variable_values": [
    {
      "name": "country_rls_var",
      "values": [
        "Germany",
        "Australia"
      ]
    }
  ]
}'

After this configuration, all filtering is governed by the variable rules set for ABAC via RLS, since legacy JWT implementation with filter_rules allows all values.

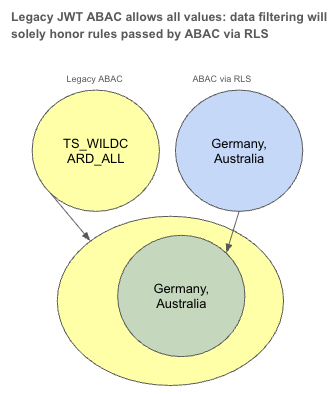

JWT migration test phase 2

Phase 3: Remove all legacy JWT rules🔗

After the legacy JWT configuration values are set to allow all values for that user, subsequent calls can be made without setting the legacy JWT ABAC values.

This allows you to test the payload with variable_values, which you ultimately will be using to generate authentication tokens in the future.

For example:

curl -X POST \
  --url 'https://{ThoughtSpot-Host}/api/rest/2.0/auth/token/custom'  \
  -H 'Accept: application/json' \
  -H 'Content-Type: application/json' \
  --data-raw '{
  "username": "secured_user",
  "secret_key": "{secret_key}",
  "persist_option": "APPEND",
  "variable_values": [
    {
      "name": "country_rls_var",
      "values": [
        "Germany",
        "Australia"
      ]
    }
  ]
}'

After this step:

Legacy JWT ABAC GA rules are no longer in effect.
User access is governed solely by ABAC via RLS.
This payload should match what you plan to use in production.

JWT migration test phase 3

Note

When you are ready to roll out the ABAC via RLS configuration, you must disable or remove the is_mandatory_token_filter setting from your models before going live. If this setting remains enabled, any user whose JWT does not include a filter value, or TS_WILDCARD_ALL to explicitly allow all values for that mandatory token filter may see no data returned, even though the new RLS-based ABAC rules are configured to allow them to see data.

Examples for mapping legacy JWT ABAC GA expressions to ABAC via RLS🔗

A few examples of how to translate legacy JWT expressions into equivalent RLS rules are listed here. These examples assume the following:

Your setup has a variable named country_rls_var.
RLS expressions use ts_var(country_rls_var) to reference the value passed via variable_values.

Operator Legacy JWT ABAC implementation Equivalent values in RLS rules in table for ABAC via RLS

Operator	Legacy JWT ABAC implementation	Equivalent values in RLS rules in table for ABAC via RLS
`EQ` (equal)	`"filter_rules": [ { "column_name": "country", "operator": "EQ", "values": ["germany"] } ]`	`country = ts_var(country_rls_var)`
`IN` (in)	`"filter_rules": [ { "column_name": "country", "operator": "IN", "values": ["germany","australia"] } ]`	`country = ts_var(country_rls_var)` (multi-value variable)
`NE` (not equal)	`"filter_rules": [ { "column_name": "country", "operator": "NE", "values": ["germany"] } ]`	`country != ts_var(country_rls_var)`
`NOT_IN` (not in)	`"filter_rules": [ { "column_name": "country", "operator": "NOT_IN", "values": ["germany","australia"] } ]`	`country != ts_var(country_rls_var)` (multi-value variable)

EQ (equal)

"filter_rules": [
  {
    "column_name": "country",
    "operator": "EQ",
    "values": ["germany"]
  }
]

country = ts_var(country_rls_var)

IN (in)

"filter_rules": [
  {
    "column_name": "country",
    "operator": "IN",
    "values": ["germany","australia"]
  }
]

country = ts_var(country_rls_var) (multi-value variable)

NE (not equal)

"filter_rules": [
  {
    "column_name": "country",
    "operator": "NE",
    "values": ["germany"]
  }
]

country != ts_var(country_rls_var)

NOT_IN (not in)

"filter_rules": [
  {
    "column_name": "country",
    "operator": "NOT_IN",
    "values": ["germany","australia"]
  }
]

country != ts_var(country_rls_var) (multi-value variable)

Note	RLS rules support multi-value variables; use appropriate functions or operators in the RLS expression depending on how you want to handle lists.

Additional resources🔗

For information about JWT with custom variables and RLS rules, see ABAC via RLS rules.
For information about RLS, see RLS Rules and ThoughtSpot Product Documentation.
