Prerender components

Prerender components

To optimize your user’s experience when ThoughtSpot is embedded into your application, we recommend using the prerender method.

PrerenderπŸ”—

You can load ThoughtSpot components that are not specific to the user’s session before your application user accesses the embedded content. With this, the amount of ThoughtSpot assets left to load when the user accesses the embedded content is reduced.

When to use prerenderπŸ”—

Use prerender in the following cases:

  • if you have applications that do not have ThoughtSpot on the landing page.

  • if you are embedding ThoughtSpot Liveboards in your applications.

How it worksπŸ”—

Pre-render allows developers to pre-load the ThoughtSpot application in the background before the user navigates to the embedded content.

It allows you to create a placeholder element on the page for the Liveboard to eventually populate. To preload components, you must place this element into a section of your application that will be viewed before the Liveboard. For example, it is common for analytics applications to have a custom-built landing page that directs users to relevant pieces of embedded content. This would be an ideal place to preload the component, so the frame is ready to render by the time the user clicks on a specific link.

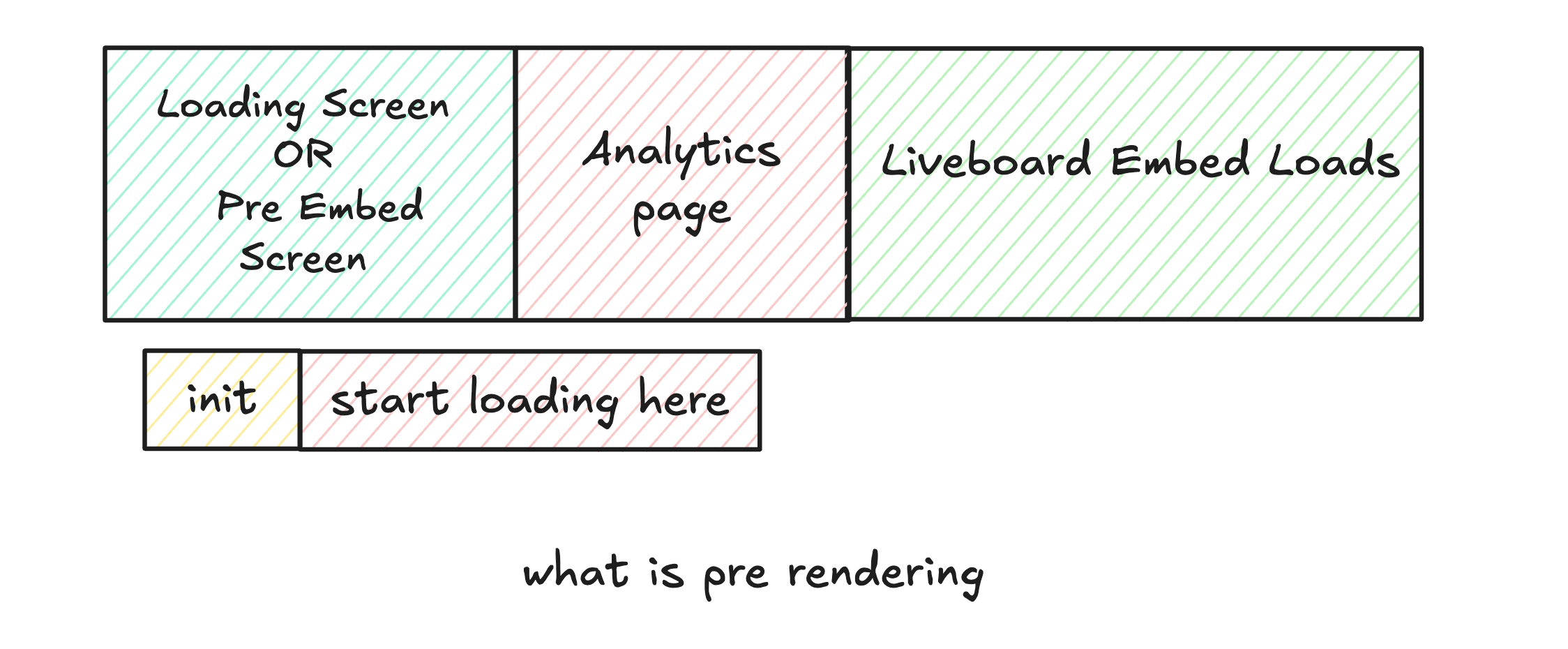

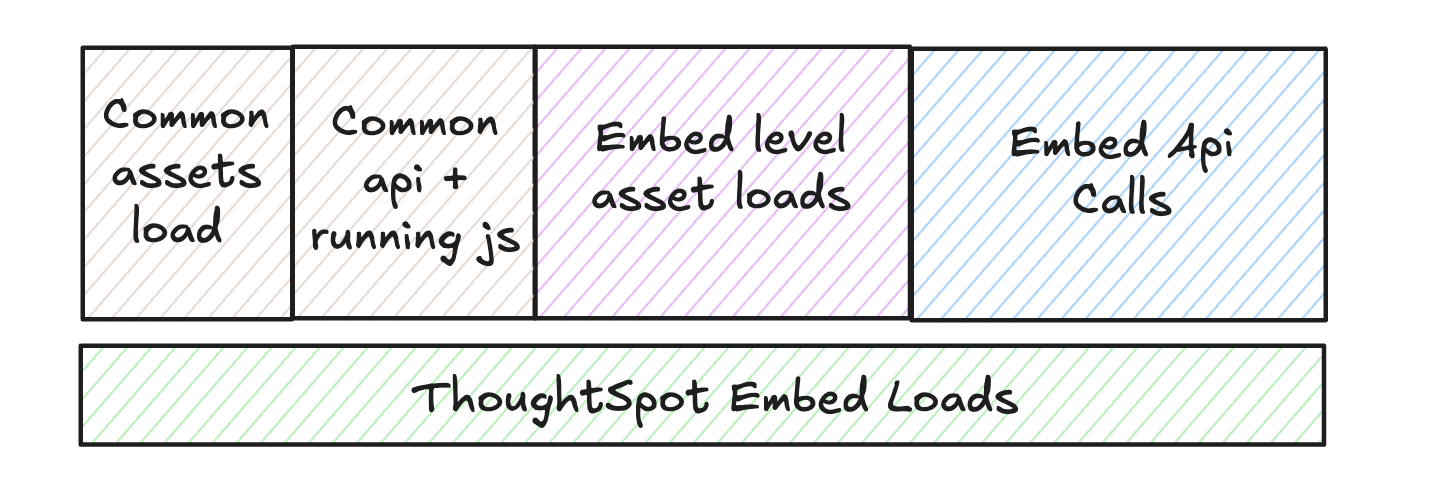

The following figure illustrates the benefits of the pre-render method:

prerender

How to implement prerenderπŸ”—

Depending on the framework and project, you can implement this using Standard JavaScript or React.

Standard JSπŸ”—

If using Javascript:

  1. Create a container for the Liveboard and a placeholder.

    For this approach, you require two containers:

    • a div container with absolute position. This will eventually be used to render the Liveboard.

    • a placeholder div. This is the container designated for the Liveboard, which you will set as the primary embed container in your application code. When it is time to load a Liveboard, move the prerender div on top of the placeholder div.

      <div id="placeholder"></div>
      <div id="prerender"></div>
    #prerender{
      position: absolute;
      opacity: 0;
      left: 0;
      top: 0;
      height: 0;
      width: 0;
    }
  2. PreRender ThoughtSpot

    Inside the prerender div, you can create a placeholder for Liveboard embedding. Before calling the Liveboard GUID, call prerenderGeneric to start the load process for the primary embed and transfer the bulk of the information needed by ThoughtSpot to the client browser.

    let renderDiv = document.getElementById("prerender");
    let embed = new LiveboardEmbed(renderDiv, {
      frameParams: {
        height: "1200px"
      }
    });
    embed.prerenderGeneric();
  3. Render the embedded Liveboard

    When it is time for the user to view a specific liveboard, move the prerender div onto the placeholder, and instruct the Liveboard Embed to load the required content. To do this, use the navigateToLiveboard function on the embed object:

    //Navigate embed container to new liveboard id

    let liveboardID = "16b8c2e2-edfc-4e42-8827-98387f384b1b"
    embed.navigateToLiveboard(liveboardID)

    //Obtain the current bounds of the placeholder element
    let placeholderDiv = document.getElementById("placeholder");
    const coords = placeholderDiv.getBoundingClientRect();
    const offset = getOffset(placeholderDiv);

    //Move the renderer into those bounds
    renderDiv.style.opacity = 1;
    renderDiv.style.top = offset.top;
    renderDiv.style.left = offset.left;
    renderDiv.style.width = coords.width;
    renderDiv.style.height = coords.height;

    function getOffset(el) {
      var _x = 0;
      var _y = 0;
      while (el && !isNaN(el.offsetLeft) && !isNaN(el.offsetTop)) {
        _x += el.offsetLeft - el.scrollLeft;
        _y += el.offsetTop - el.scrollTop;
        el = el.offsetParent;
      }
      return { top: _y, left: _x };
    }

ReactπŸ”—

If using React, make sure the container is not continuously reloaded with state changes. You can use a context provider to achieve this. For more information, see https://react.dev/learn/passing-data-deeply-with-context.

const prerenderdLiveboardContext = createContext<any>({});

This approach requires two containers. The first is a div with absolute position. This will eventually be used to render the liveboard.

The second is a placeholder. This is the container designated for the Liveboard, which you will set as the primary embed container in your application code. When loading the Liveboard, move the prerender div on top of the placeholder div.

  1. Create render shell

    This is a div element with absolute position. Use context variables to control the div’s visibility and coordinate position. This div also holds the embedded Liveboard, and the liveboardId is set by the respective context variable.

    By default, this div will be invisible and placed into a corner of the page (0 coordinates), with no liveboardId.

    export const PrerenderedLiveboardShell = () => {

      const ref = useRef(null);
      const lb = useRef<LiveboardEmbed | null>(null);
      const { isVisible, liveboardId, coords } = useContext(
        prerenderdLiveboardContext
      );

      return (
        <div
          id="prerender"
          style={{
            opacity: isVisible ? 1 : 0,
            ...coords,
            position: "absolute"
          }}
          ref={ref}
        ></div>
      );
    }
  2. Pre-render the embed container

    1. Create a Liveboard embed within this div.

    2. Before calling the Liveboard GUID, call prerenderGeneric to start the load process for the primary embed and transfer the bulk of the information needed by ThoughtSpot to render content to the client browser.

    3. Pass an empty array into useEffect.

    useEffect(() => {
      if (!ref.current) {
        return;
      }
      lb.current = new LiveboardEmbed(ref.current, {
        frameParams: {
          height: "1200px"
        }
      });
      lb.current.prerenderGeneric();
    }, []);
  3. Navigate to Liveboard

    Update the render container when the user is ready to view the Liveboard. For this, use the previously defined context variable that sets the liveboardId, and leverage useEffect to register the changes to this ID. When the Liveboard ID is updated, render the new Liveboard by using the navigateToLiveboard function:

    useEffect(() => {
      if (!liveboardId) {
        return;
      }
      lb.current?.navigateToLiveboard(liveboardId);
    }, [liveboardId]);
  4. Create context provider

    To manage context variables and render the shell we next need to create a provider component:

    export const PrerenderdLiveboardProvider = ({ children }) => {
      const [isVisible, setIsVisible] = useState(false);
      const [liveboardId, setLiveboardId] = useState();
      const [coords, setCoords] = useState({
        left: 0,
        top: 0,
        height: 0,
        width: 0
      });
      return (
        <prerenderdLiveboardContext.Provider
          value={{
            isVisible,
            setIsVisible,
            liveboardId,
            setLiveboardId,
            coords,
            setCoords
          }}
        >
          {children}
          <PrerenderedLiveboardShell />
        </prerenderdLiveboardContext.Provider>
      );
    };
  5. Add this code to your application

    In this example, the primary content is in a component named LiveboardBrowser. It includes a list of different liveboards that a user can choose from, and a space on the page to render the Liveboard. The IDs are hard-coded in this example. However, you can populate this via a REST call.

    init({
    thoughtSpotHost: "https://my.thoughtspot.cloud/",
    authType: AuthType.None, // AuthType.Passthrough
    })

    function App() {
      return (
        <div className="App">
          <PrerenderdLiveboardProvider>
            <LiveboardBrowser></LiveboardBrowser>
          </PrerenderdLiveboardProvider>
        </div>
      );
    }
  6. Render a Liveboard

    1. Set our context variables

    2. Specify the GUID of the Liveboard

    3. Set coordinates for the element the shell will overlay

    4. Set visibility to true.

    function toggleLiveboardSelect(e){
      setLiveboardId(e.target.value);
      const coords = ref.current.getBoundingClientRect();
      const offset = getOffset(ref.current);
      setCoords({
        height: coords.height,
        width: coords.width,
        top: offset.top,
        left: offset.left
      });
      setIsVisible(true);
    }
